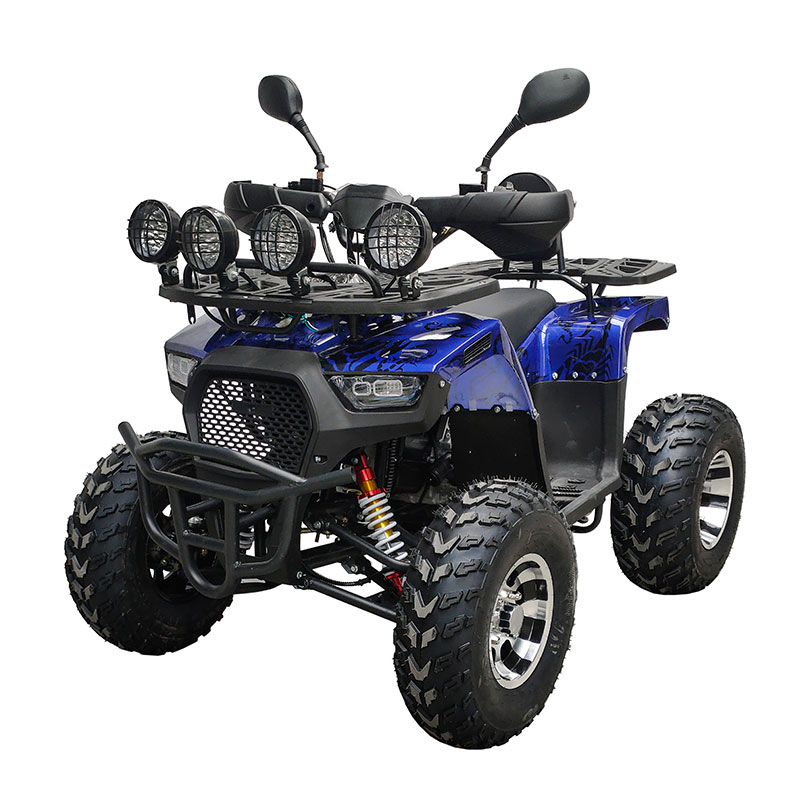

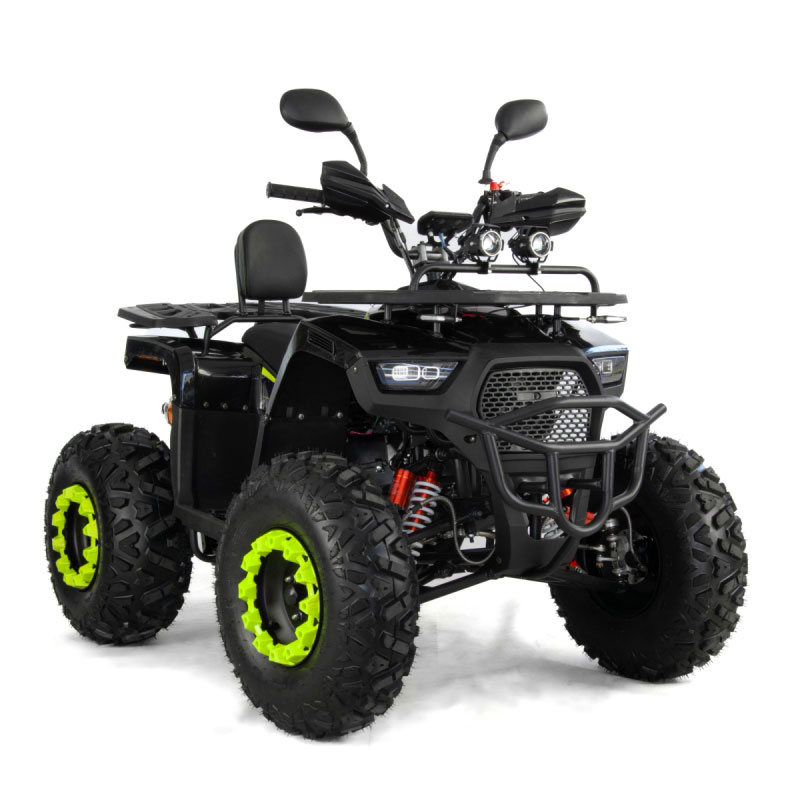

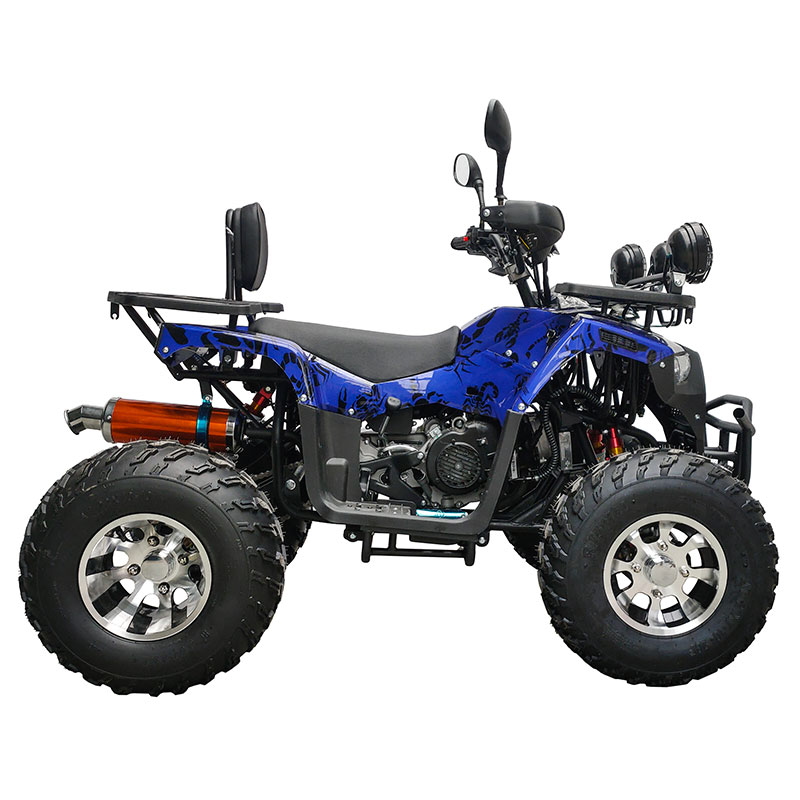

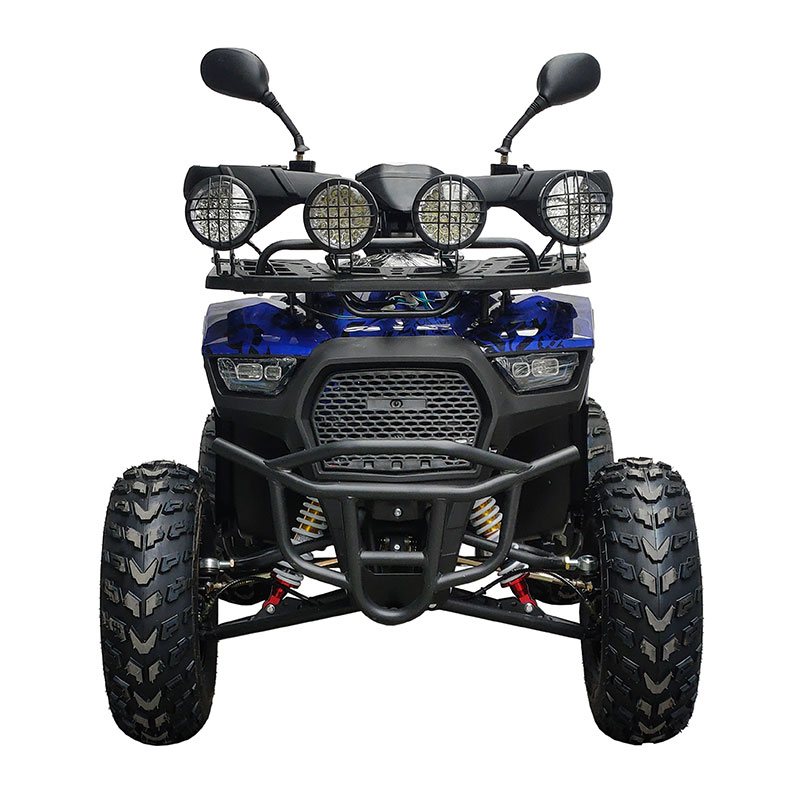

150cc ATV (A7-23B)

Engine Type

Single cylinder, air-cooled, 4-stroke, fully automatic with reverse

Engine Displacement

150cc air cooled or 200cc oil-cooled

Bore & Stroke

57.40x57.80mm[200cc: 62.5x57.8mm]

Compression Ratio

9.2:1[200cc: 10:1]

Carburetor

Carburetor

Max. Power Output

6.2kW/(7000r/min) [200cc: 8.5kW/(7500r/min)]

Max. Torque

8.8N.m/(5500r/min)[200cc: 12.5N.m/(5500r/min)]

Ignition

CDI

Starter

Electric start + kick start

Drive Train

Clutch

Fully automatic

Gearbox

1 forward, neutral and 1 reverse gear

Final Drive

Chain

Dimensions and Weight

Length x Width x Height

1,830 x 1,100 x 1,370mm mirror height

Wheelbase

1,180mm

Front Tread

900mm

Rear Tread

850mm

Seat Height

800mm

Foot Step to Seat

460mm

Fuel Capacity

3.0L, metal tank

Dry Weight

162kg

Max. Load

200kg

Wheels, Suspension and Brakes

Wheels Front

10 inch iron rim

Wheels Rear

10 inch iron rim

Tyres Front

23x7-10

Tyres Rear

22x10-10

Suspension Front

Independent double-wishbone

Suspension Rear

Swing arm with single shock

Brakes Front

Dual drum brakes or dual hydraulic disc brakes(Hand operated)

Brakes Rear

Hydraulic disc brake(Hand operated or foot operated)

Packing

Carton Size

147x83x80cm

G.W./N.W.

190/165kg

Container Load

22pcs/44pcs/66pcs
